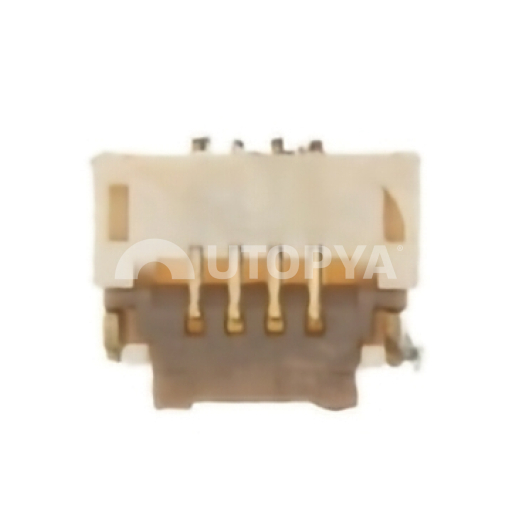

ZIF 4 Pin Connector for ZL Button - Left Joy-Con Nintendo Switch

Description

This 4-pin ZIF (Zero Insertion Force) connector is used to connect the ZL button ribbon cable to the left Joy-Con electronic board of the Nintendo Switch. It allows for a reliable and removable attachment of the ribbon cable without direct soldering, ensuring signal transmission between the ZL button and the Joy-Con motherboard. In case of a broken, desoldered, or worn connector, this component is essential to fully restore the functionality of the button.

Technical Specifications

• Type: ZIF 4-pin connector (flip-lock)
• Function: connection of the ZL button ribbon cable
• Compatibility: Left Joy-Con - Nintendo Switch (all versions)
• Mounting: SMT - soldering on Joy-Con PCB
• Number of pins: 4 (non-standard pitch for ZL ribbon cable)

Advantages

• Allows for repairing a damaged connection between the ZL button and the board
• Avoids complete replacement of the Joy-Con board
• Clean and reliable installation through precision soldering
• Compatible with original Nintendo ribbons
• Ideal for technicians or repairers equipped with micro-soldering tools
• Component compliant with Joy-Con circuit standards
