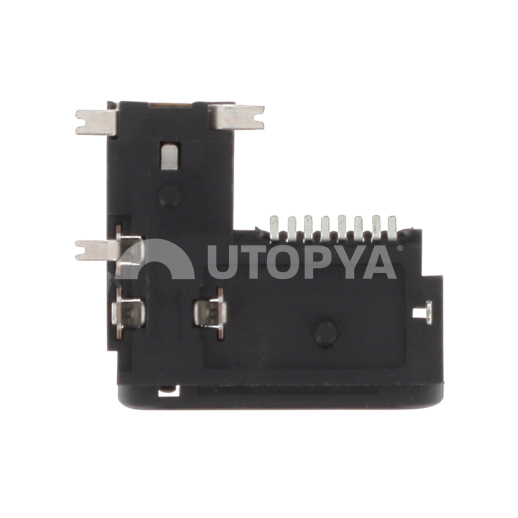

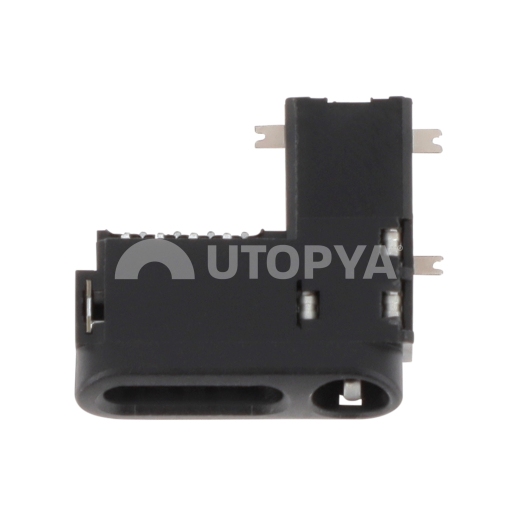

3.5mm Jack Plug for DualShock 4 Controller

Description

This 3.5mm jack plug is a replacement component for Sony DualShock 4 controllers. It restores wired audio connectivity (headphones, earphones) as well as the functions of the built-in microphone. In case of crackling noises, sound loss, or mechanical damage to the plug, this component ensures targeted repair without having to change the entire motherboard.

Technical Specifications

• Type: 3.5mm TRRS audio jack connector
• Compatibility:
  • DualShock 4 V1 – models JDM-001 / JDM-011 / JDM-020 / JDM-030
  • DualShock 4 V2 – models JDM-040 / JDM-050 / JDM-055
• Function: headphone output + microphone input
• Mounting: soldered on the controller's motherboard (JDS)
• Format: identical to the original Sony part
• Position: bottom face of the controller (between the handles)

Advantages

• Repairs sound or microphone issues on wired headphones
• Allows to keep the original motherboard and components
• Precise installation through soldering (requires a fine or hot air station)
• Compatible with all standard headsets (TRRS)
• Economical and sustainable solution to restore audio functions
