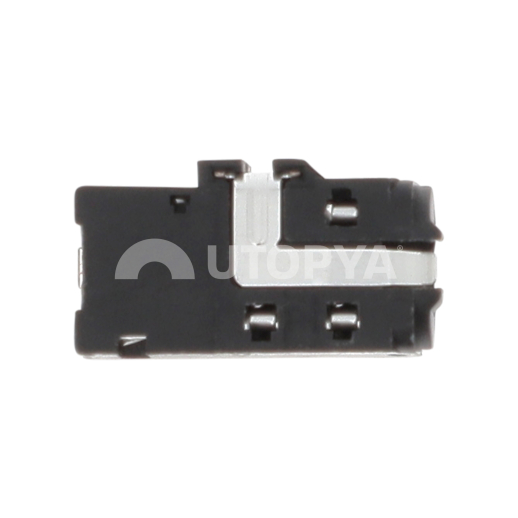

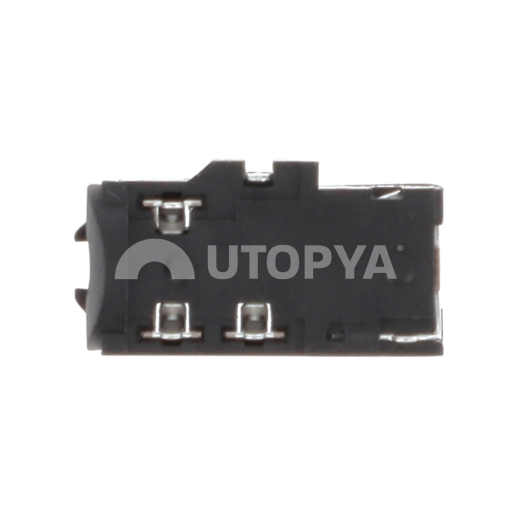

3.5mm Audio Jack Connector for Nintendo Switch OLED

Description

This 3.5mm jack connector is a replacement part for the Nintendo Switch OLED. It restores the wired audio output via headphones or earphones in case of crackling, sound cut-off, or random detection issues. Mounted on a daughterboard in the OLED version, this connector fits into the upper chassis of the console. It is essential to regain optimal sound quality without using Bluetooth peripherals.

Technical Specifications

• Type: TRRS 3.5mm stereo audio jack connector
• Compatibility: Nintendo Switch OLED (model HEG-001)
• Functions: wired headphone output, plug detection
• Mounting: soldering or insertion on daughterboard (depending on version)
• Position: upper left part of the console
• Format: identical to the original connector

Advantages

• Repairs sound issues or damaged jack port
• Allows to keep wired audio on Switch OLED
• Identical spare part to the official Nintendo component
• Compatible with stereo headphones and hands-free kits
• Installation possible by technician or experienced user
• Economical solution to restore the console's audio functions
