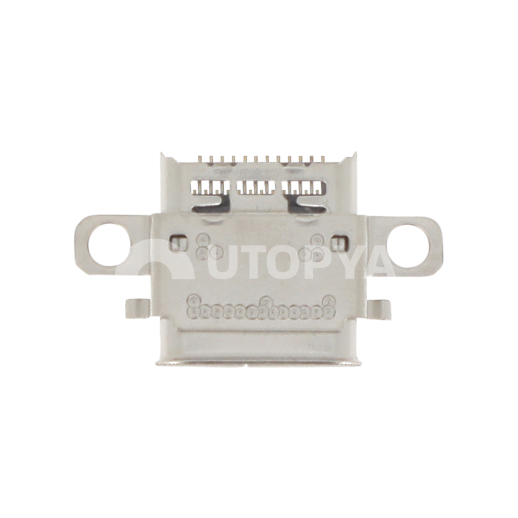

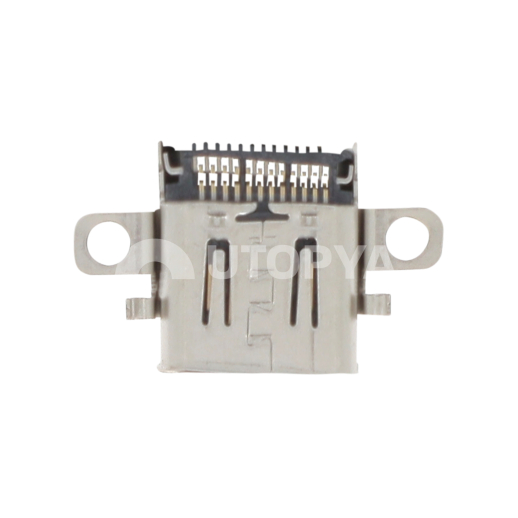

USB-C Charging Connector for Nintendo Switch OLED (soldering required)

Description

This USB-C charging connector is designed for the Nintendo Switch OLED model. It is soldered directly onto the motherboard and allows for recharging the console as well as transmitting data and signal to the HDMI dock. In case of loose port, poor contact, corrosion, or faulty charging, this component is essential to restore the charging and connection functionalities of the USB-C port. It is reserved for technicians or DIY enthusiasts with micro-soldering skills.

Technical Specifications

• Type: USB-C Connector (24 pins, double row)
• Compatibility: Nintendo Switch OLED only
• Functions: charging, data transfer, display via dock (HDMI)
• Mounting: soldered directly onto the motherboard (SMT)
• Position: central lower part of the motherboard
• Format: compliant with the original installed model

Advantages

• Repairs charging issues, dock connection, or USB data problems
• Allows to keep the original motherboard
• Compatible with official power supplies, cables, and docks
• Part compliant with the technical specifications of the Switch OLED
• Economical and durable solution for professional repairers
• Possible installation with hot air soldering station (BGA/QFN)
