12 Pin Charging Connector for PS4 Controller (JDS-040 - V4)

Description

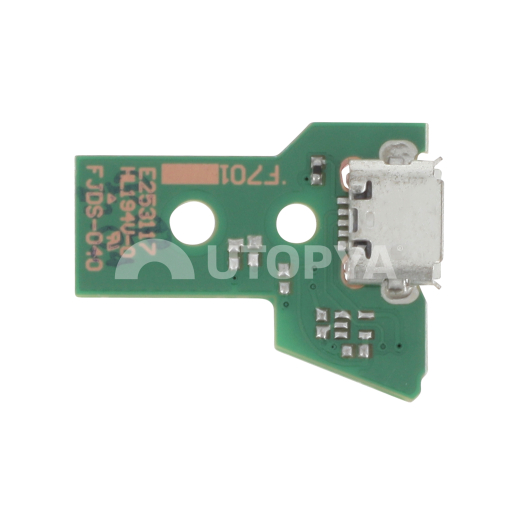

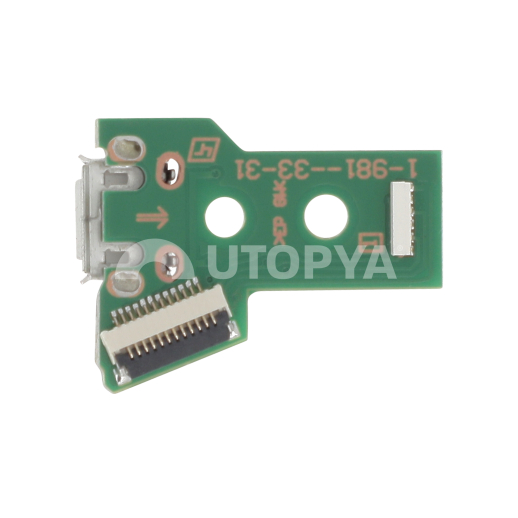

This 12-pin FPC connector is designed for repairing DualShock 4 V4 controllers equipped with the JDS-040 USB board. It enables the connection between the micro-USB charging port and the controller's motherboard via a flat cable. In case of charging issues, synchronization problems, or loose connections, replacing this connector is a cost-effective solution to restore the proper functioning of the PS4 controller without replacing the entire daughter board.

Technical Specifications

• Type: FPC Connector (Flat Printed Connector) - 12 pins
• Compatibility: PS4 V4 Controller - model JDS-040
• Position: soldered on the daughter board (USB)
• Mounting: Surface Mount Technology (SMT) soldering
• Dimensions: identical to the original Sony connector
• Function: data and power transmission through the cable

Advantages

• Repairs charging or synchronization issues of the controller
• Allows to keep the original USB board
• Cost-effective and targeted solution
• Compatible exclusively with JDS-040 (V4)
• Ideal for technicians or experienced users in micro-soldering
• Equivalent quality to the original, for a reliable result
