USB-C Charging Connector for PlayStation 5 Console

Description

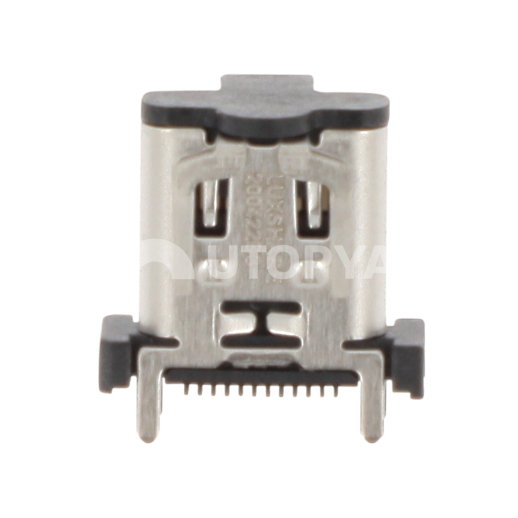

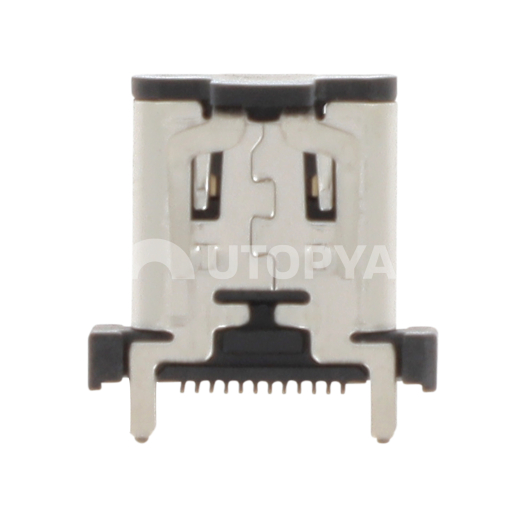

This USB Type-C connector is designed to replace the charging / transfer port located at the front of the PlayStation 5 console, used to connect a controller, an external hard drive, or other accessories. In case of a loose, damaged, or unusable port, this component allows to restore the functions of charging, synchronization, and data transfer. It is identical to the original part and requires micro-soldering on the USB daughter board or on the motherboard depending on the model.

Technical Specifications

• Type: Female USB Type-C Port - 24 pins
• Compatibility: Sony PlayStation 5 Console - models CFI-10XX / 11XX / 12XX
• Functions: charging, data transfer, external devices
• Mounting: SMD soldering on board (front daughter board or main board)
• Position: front face of the console (next to the USB-A port), sometimes at the back depending on the revisions
• Format: identical to the one originally installed (high durability)

Advantages

• Repairs charging port, transfer, or device detection issues
• Compatible with official and third-party USB-C cables
• Installation possible with a hot air soldering station
• Retains all original features (power, data, USB 3.2)
• New part compliant with Sony standards
• Ideal for specialized technicians or repair workshops
