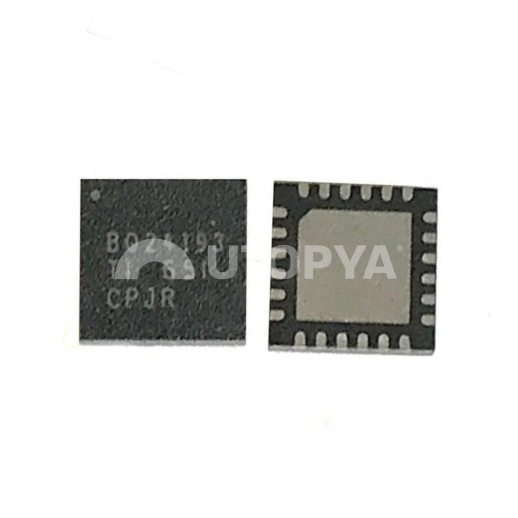

BQ24193 Charge Controller Chip for Nintendo Switch

Description

The BQ24193 chip is a lithium-ion charge controller used on the Nintendo Switch motherboard. It plays a central role in battery management: voltage regulation, thermal safety, fast charging management, and communication with other components like the M92T36. In case of slow charging, absence of battery charging despite being plugged in, or power-related restarts, its replacement is often necessary to restore normal operation.

Technical Specifications

• Reference: BQ24193 (Texas Instruments)
• Type: PMIC (Power Management IC) – integrated Li-ion charger
• Compatibility: Nintendo Switch (standard models, excluding OLED)
• Functions: battery charge management, thermal protection, voltage regulation
• Mounting: SMD – QFN soldering on the motherboard
• Position: near the power circuit and the battery

Advantages

• Repairs battery-related charging or startup issues
• Allows to keep the original motherboard and other components
• Complementary to M92T36 and P13USB chips in the power circuit
• OEM quality equivalent to the part used by Nintendo
• Ideal solution for experienced micro-soldering repairers
• Essential for advanced charge circuit repairs
